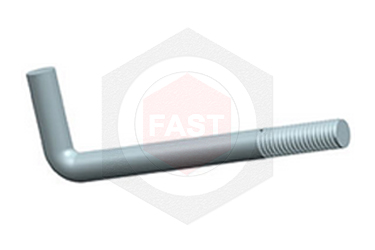

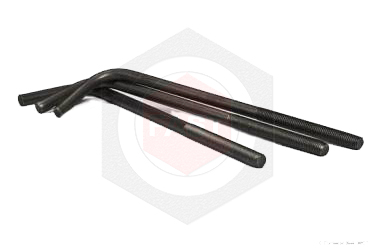

Bent anchor bolts are embedded in concrete and used to support structural steel columns, light poles, highway sign structures, bridge rail, equipment, and many other applications. The bent portion, or “leg”, of the anchor bolt serves to create resistance so that the bolt does not pull out of the concrete foundation when force is applied.
Fastindo Wiratama also manufactures other concrete anchor bolt configurations including anchor rods, headed anchor bolts, and swedged rods.

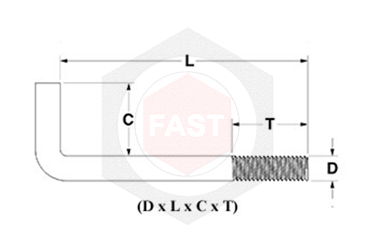

Custom bent bolts are typically dimensioned as follows:
Diameter (D) x Length (L) x Leg distance (C) x Thread (T)
Manufacturing
Fastindo Wiratama manufactures custom bent anchor bolts from 1/2″ – 4″ diameter to virtually any ASTM specification. They are provided either plain finish or hot-dip galvanized. Stainless steel anchor bolts are also manufactured. All operations, including the galvanizing process, are performed in-house.
Stock
Fastindo Wiratama manufactures and stocks anchor bolts, which are
available for immediate shipment. Our inventory includes a full line of
anchor bolts in ASTM grades F1554 Grade 36, F1554 Grade 55, and A307
grade C. Technically, A307 grade C was withdrawn in 2007
and replaced by F1554 grade 36. However, Fastindo Wiratama will supply
stock anchor bolts to this specification when requested by the
customer. For more in-depth technical information about the F1554
anchor bolt specification.
Grades in Stock
ASTM F1554-36, F1554-55, ASTM A307-C*, AASHTO M314-36, M314-55
| 90° Anchor Bolt Dimensions | |||||
|---|---|---|---|---|---|
| Anchor Bolt Size (D x L x C x T) | Plain Finish Part # | Hot-Dip Galvanized Part # | |||
| Diam. | Length | Hook | Thread | ||
| 1⁄2 | 8 | 2 | 4 | 12357 | 12358 |
| 1⁄2 | 10 | 2 | 4 | 12029 | 12030 |
| 1⁄2 | 12 | 2 | 4 | 12618 | 12619 |
| 1⁄2 | 18 | 4 | 4 | Made to Order | 19579 |
| 5⁄8 | 8 | 2 | 4 | 17752 | 17753 |
| 5⁄8 | 10 | 2 | 4 | 17754 | 17755 |
| 5⁄8 | 12 | 3 | 4 | 17735 | 17689 |
| 5⁄8 | 18 | 4 | 6 | Made to Order | 17658 |
| 3⁄4 | 6 | 3 | 4 | 14122 | 14123 |
| 3⁄4 | 8 | 3 | 4 | 16599 | 16600 |
| 3⁄4 | 10 | 3 | 4 | 16601 | 16602 |
| 3⁄4 | 12 | 4 | 4 | 16603 | 16604 |
| 3⁄4 | 14 | 4 | 6 | 18918 | 18919 |
| 3⁄4 | 15 | 4 | 6 | 15980 | 15981 |
| 3⁄4 | 16 | 4 | 6 | 18920 | 18921 |
| 3⁄4 | 18 | 4 | 6 | 15982 | 15983 |
| 3⁄4 | 18 | 4 | 7 | Made to Order | 17979 |
| 3⁄4 | 24 | 4 | 6 | 16629 | 16630 |
| 3⁄4 | 24 | 4 | 7 | Made to Order | 17970 |
| 3⁄4 | 30 | 4 | 6 | Made to Order | 15989 |
| 3⁄4 | 30 | 4 | 7 | Made to Order | 17981 |
| 3⁄4 | 36 | 4 | 6 | Made to Order | 19300 |
| 7⁄8 | 18 | 4 | 6 | 15984 | 15985 |
| 1 | 12 | 4 | 4 | 18930 | 19305 |
| 1 | 16 | 4 | 6 | 18931 | 19296 |
| 1 | 18 | 4 | 6 | 15986 | 15987 |
| 1 | 24 | 4 | 6 | 18933 | 19298 |
| 1 | 36 | 4 | 6 | 15978 | 15979 |
| 1 | 36 | 4 | 7 | Made to Order | 17729 |
| 1 | 36 | 4 | 12 | Made to Order | 15976 |
| 11⁄4 | 32 | 6 | 7 | Made to Order | 17063 |
| 11⁄4 | 36 | 5 | 12 | Made to Order | 19594 |
| 11⁄4 | 42 | 6 | 7 | Made to Order | 17064 |
|
|||||
