Clipped hardened washers are used where space limitations require one side be clipped. These washers provide a smooth bearing surface and are used under the head of a bolt and / or a nut. The chemical, mechanical, and dimensional requirements for hardened washers are covered under the ASTM specification F436. Clipped hardened washers are through hardened or carburized to add strength, but are physically smaller than a standard F844 flat washer.


Available

Diameters: 1/2" - 2″
Origin: Domestic
Finish: Black and hot-dip galvanized


Dimensions

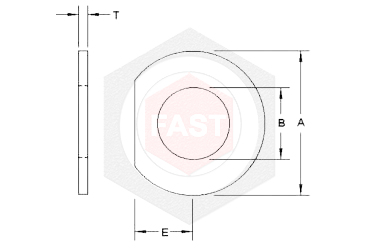

Bolt Size A B T E Weight (lbs.) Per 1000
Outside Diameter Inside Diameter Thickness Min. Edge Distance
Min Max
1⁄2 11⁄16 17/sup>⁄32 .097 .177 7⁄16 17
5⁄8 15⁄16 11⁄16 .122 .177 9⁄16 32
3⁄4 115⁄32 13⁄16 .122 .177 21⁄32 40
7⁄8 13⁄4 15⁄16 .136 .177 25⁄32 63
1 2 11⁄8 .136 .177 7⁄8 82
11⁄8 21⁄4 11⁄4 .136 .177 1 98
11⁄4 21⁄2 13⁄8 .136 .177 13⁄32 137
13⁄8 23⁄4 11⁄2 .136 .177 17⁄32 160
11⁄2 3 15⁄8 .136 .177 15⁄16 200
13⁄4 33⁄8 17⁄8 .178 .228 117⁄32 300
2 33⁄4 21⁄8 .178 .228 13⁄4 360

Dimensions per SAE Pattern to ASTM F436
